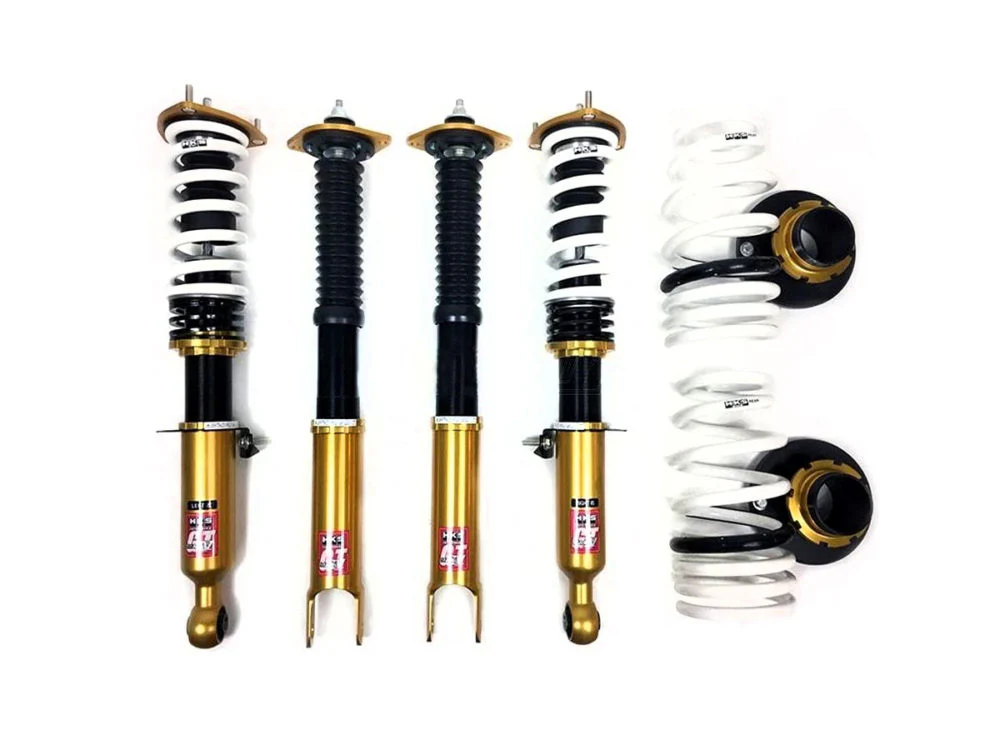

HKS Hipermax Max IV GT Suspension Kit Toyota GR Yaris (2020+) – 80230-AT025A



Get the perfect stance, stability and handling performance from the GR Yaris with HKS’s Hipermax Max IV GT suspension kit.



The ride comfort required for daily use and sports performance such as stability has been improved in a well-balanced tune without losing stock comfortability

Pursue a drivability at the specification setting, We could create suspension that the car movement easier to understand and allows the driver to have better control.

Testing various spring rates resulted in a suspension with a spring rate of F = 69 Nm (7 kg)/R = 59 Nm (6 kg) and a spring length of F = 200 mm (series barrel type)/R = 250 mm (series barrel type) that was suitable for a wide range of users

Increase high rates springs are required for use in hill climbs and mini truck or use with high grip tires (ex Yokohama A052).

When the spring rate is changed, the spring length is automatically changed to F = 170 mm/R = 220 mm. The recommended dial for damping force when rate-up is F: D = 15/R: D = 13.

When considering a circuit attack, it is recommended to swing the rear suspension’s toe angle to out. Understeer becomes less to come out, and you can get on the gas pedal earlier when you stand up from the corner. Control range of understeer and oversteer are also improved.



Note: Spring setting for Full kit

– 5 Spring length (mm) changes to F=170 / R=220.

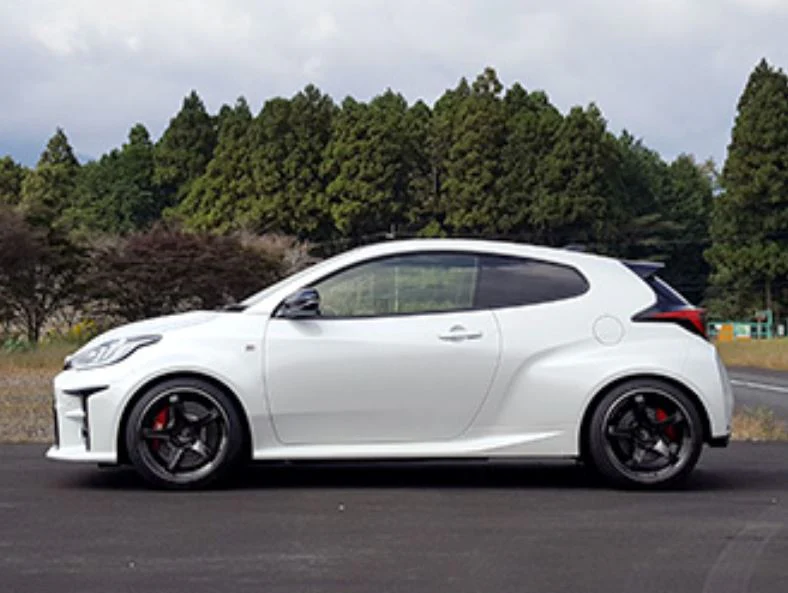

Ride Height (mm)Factory *2Test dataAdjustable range

High – Low *3Drivable range

High – Low *4FRONTRide height *1654←679 ～ 634679 ～ 634Against stock-25←0 ～ -450 ～ -45REARRide height *1651←677 ～　630677 ～　630Against stock-26←0 ～ -470 ～ -47



*1. Height from road surface to fender arch.

*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.)

*3. Adjustable range (However, the lowest value may not be road legal.

Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.

Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)

*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)

Caution). Actual data depends on each vehicle.
